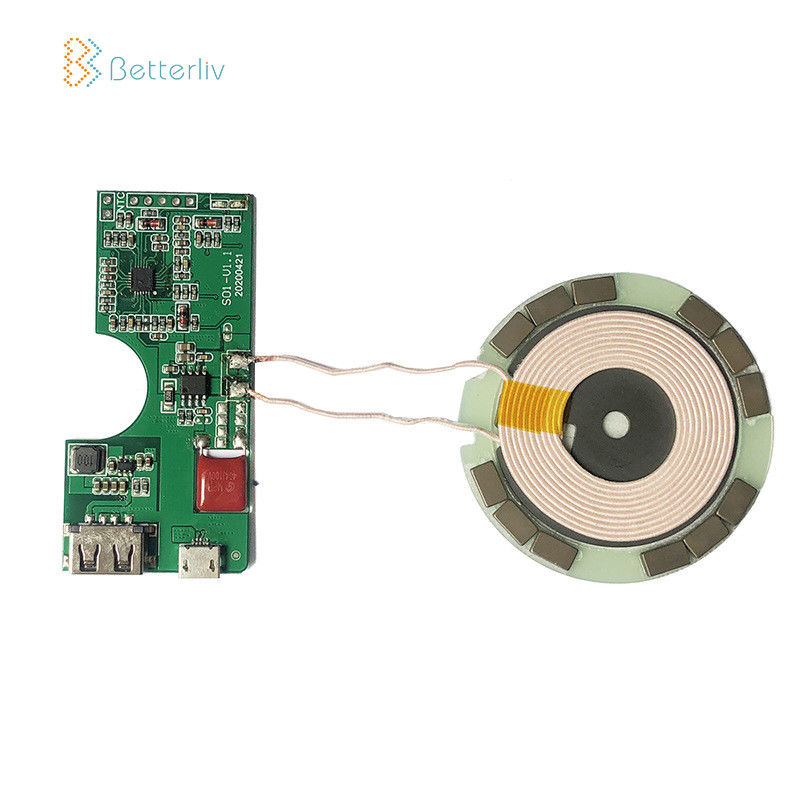

15 Watt Wireless Charger PCBA , Embedded Qi Charger Module
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Smart Electronics Pcba | Base Material: | FR4 |
|---|---|---|---|
| Min. Line Width: | 0.1mm/4mi | PCBA Service:: | SMD SMT DIP Component Assembly |
| Surface Finishing: | Lead-free HASL | Board Thickness: | 0.2mm-8mm |
| PCBA Service: | Support Customization | Transmission Distance: | 3-8mm |
| Product Standards: | Qi Standard | Color: | Green Black Blue White |
| High Light: | 15 Watt Wireless Charger PCBA,15 Watt Embedded Qi Charger Module,Embedded 15w Wireless Qi Charger Module |
||
15 Watt Wireless Small 15W Pcba Embedded Fast Charging Qi Charger Module
Product Description
This PCBA supports Type-C interface communication upgrade, supports PD, AFC, QC communication protocols, a complete work protection system, low cost, ultra-low operating temperature, ultra-high working efficiency, can pass all export certifications, QI certification, able to quickly and wirelessly charge Samsung, iPhone, Huawei, Xiaomi, LG, Google, ZTE, Sony, Nokia, Hammer, Gionee and many other mobile phone brands that meet the QI standard with built-in wireless charging W wireless fast charging, at the same time, it has perfect compatibility with 5W wireless charging mobile phones that meet the QI standard, and can support Qi standard receivers such as Ti, IDT, PANASONIC and so on.
|
Input voltage
|
12V,9V,5V
|
|||
|
communication protocol
|
PD, AFC, QC
|
|||
|
Interface
|
Type-C
|
|||
|
Power
|
5W / 10W fast charge for samsung , 15W fast charging for Iphone
|
|||
|
Support fast charge protocol
|
PD, QC2.0, QC3.0, AFC
|
|||
|
Inductive charging distance
|
1 ～ 10mm
|
|||
|
BPP / EPP working frequency
|
105Khz ～ 205Khz
|
|||
|
Work efficiency
|
85%
|
|||
|
OTP over temperature protection
|
YES
|
|||
|
OCP over current protection
|
YES
|
|||
|
OVP over voltage protection
|
YES
|
|||
|
UVP under voltage protection
|
YES
|
|||
|
Certification
|
KC,FCC,CE,BSMI
|
|||
Product Application
FAQ
Q1.Do you have your own research and development of the wireless charge program?
A: yes,We are the PCBA oem factory, we have a professional R&D and design engineer team that can meet your various customization needs.
Q2.What's the working temperature of this module?
A:Based on the room temperature,Standard charging: +6eC~+8^. fast charging: +8°C~+12°C.
Q3.Do you test all your goods before delivery?
A: Yes, we have 100% QC before delivery
Q4.May I OEM or ODM the wireless charging module
A: Yes, send us your requirements such as the PCB size and function, we will evaluate and give you some suggestions.
Q5. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q6.Whether the size of the coil can be modified ?
A: There are conventional coils 43mm, 45mm, 48mm, 50 mm .If need customized,we will die sinking. But there is a MOQ requirement.
